Application

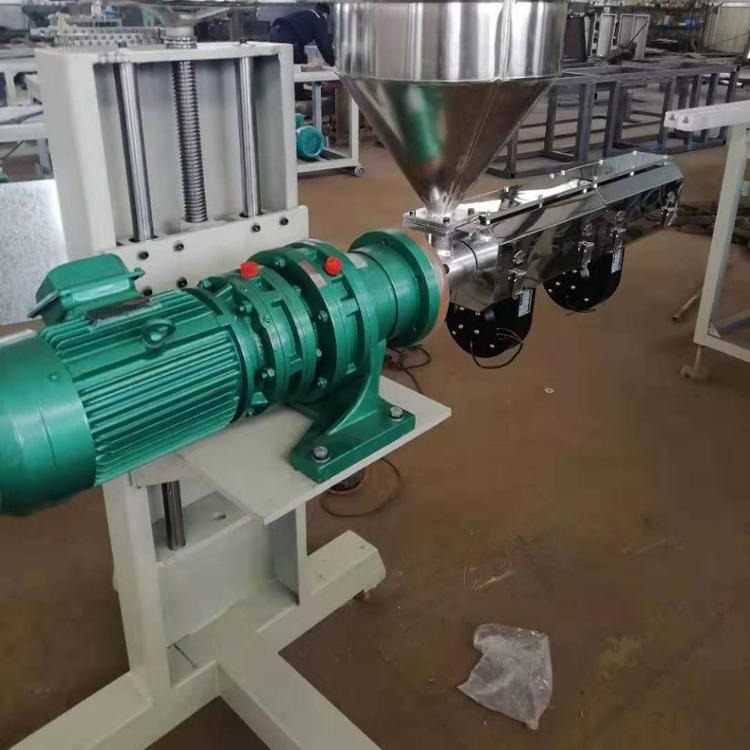

This machine is mainly used to process ABS,PLA and other plastic materials equipped with auxiliary machines, it can manufacture profile, pipes , wire and other plastic products and granulation. it has the advantage of simple production technological process, high output,stable quality and low cost.
Features
SJ series extruder is composed of barrel screw,gear transmission system,measurabe feeding, vacuum gasing, heating, cooling and electronic cotrol components etc.
The screw is made by high precision special digital screw miller, extruding property can be highly harmonized.
It has firstly introduced advanced technique of producing screws with variable pitch and depth, so that the material can be more softly sheared and cut.
The distribution box is specially designed, pull force bearing is fully imported, the drive life span can be prolonged. It can bear larger extruding pressure.
The involute gear driving is characterized by low noise,stable in working ,big bearing capacity and long service life.
This machine is advanced in design,high in output,good in plasticization and low in energy consumption.
Technical Parameter
| Model | L/D | Driving power | Capacity/H |
| SJ25 | 25:1 | 0.75-2.2KW | 1-3KG |
| SJ30 | 25:1 | 5.5KW | 10KG |
| SJ45 | 25-33:1 | 7.5-22KW | 15-20KG |
| SJ65 | 25-33:1 | 22-90KW | 60-250KG |
| SJ90 | 25-33:1 | 37-185KW | 180-550KG |
| SJ120 | 25-33:1 | 75-280KW | 320-800KG |
| SJ150 | 25-33:1 | 90-355KW |
400-1200KG |
